Cable Drive Mechanics

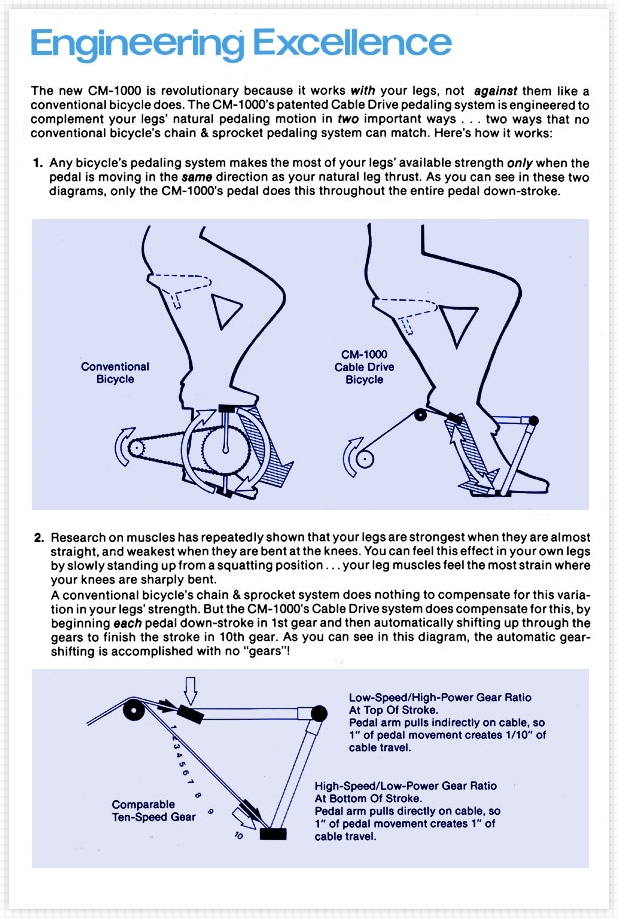

"The design called
for a new
transmission system
capable of
developing high
rpm's at the drive
wheel yet occupying
minimal space in the
compacted mode".
Previous Top of page
Previous
© Copyright 2005-2010 Fore-thought Designs™ All Rights Reserved.
CM-1000 Cable Drive Bicycle

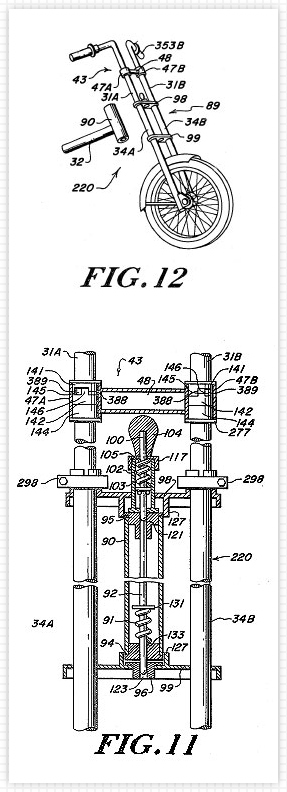

Handlebars have a dual locking system. Internal lever cam eliminates the
rotational play always associated with spring-biased safety buttons.
Two-stage telescoping handlebars accomodate the height requirements
for a wide range of riders and are easily compacted for portability.
Cables are routed internally within the bicycle's frame.

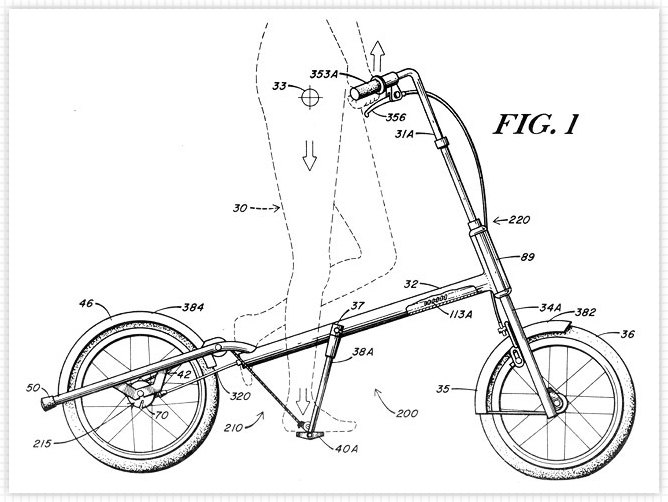

Drawings below excerpted from U.S. Patent No. 4379566. (See full patent)

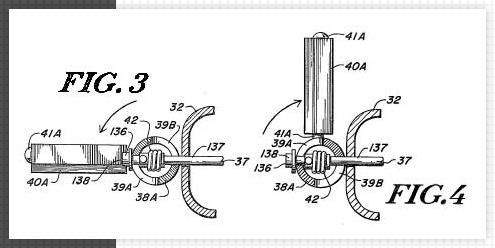

Flat-folding pedals.
Quick-release front fork.
Synchronized pedaling option.
The "Urban" second generation prototype included 16" wheels and an increased wheelbase, a quick-release, take-apart frame, caliper brakes, and an optional synchronized pedaling system.
Click on picture to view U.S. Patent.
